Using a Kindle as an eInk Clock (Python)

A little bit of Python, some Flask and an Amazon Kindle can be used as an eInk clock.

A little bit of a mini weekend project today as I wanted to put my Amazon Kindle to use when I’m not reading, and decided that the Kindle’s “Experimental Browser” could be useful. How about an eInk digital clock…

Note: I’m using Python for this project but similar results could be attained using JavaScript or Java etc. Why Python then? Because I like the language 🙂

For this project I am using:

  • A Raspberry Pi 3 as my web server
  • Flask as my web development framework as it is light weight and quick to throw together
  • A very basic HTML template to work with the CSS
  • A very basic CSS file to control the font size
  • An Amazon Kindle

First the Python:

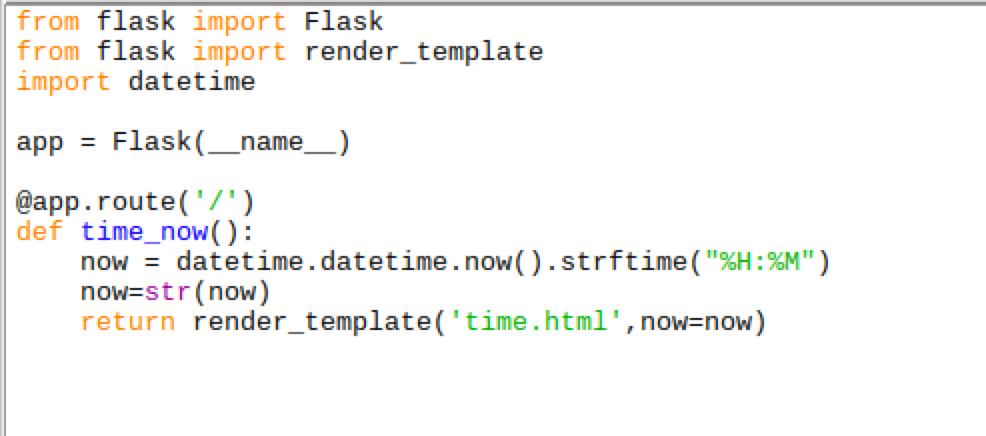

geektechstuff_flask_kindle_clock4
Python Time and Flask

From the flask library I’ve imported Flask (to serve the data) and render_template to write the data to a HTML template (called time.html). I have imported datetime to produce the time.

Then the HTML / CSS:

The HTML for time.html
The HTML for time.html

As the Kindle is a mono eInk screen I have kept the HTML (and the CSS) very simple. A title for the page, the data {{now}} that I want Flask to update and a line to make the page automatically refresh every 30 seconds.

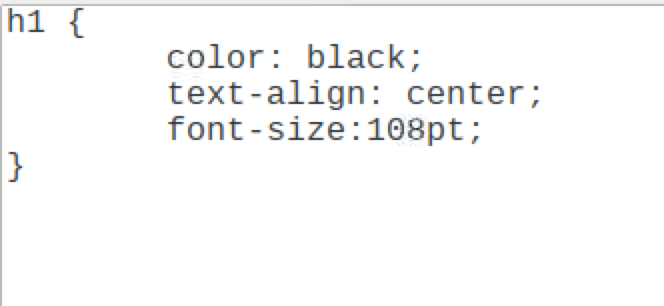

geektechstuff_flask_kindle_clock2
The CSS for the time which is in the h1 HTML tag

The HTML, CSS and Python are saved in a folder structure like this:

/Flask site/

– static (folder containing the CSS file)

-templates (folder containing the html file)

-python file (.py)

And finally to serve the page up, kick starting Flask:

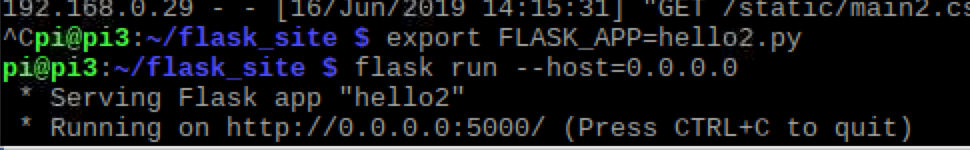

Running Flask
Running Flask
  • Navigate to the folder containing the relevant Python file and run export FLASK_APP=python_file_name.py
  • Then to server the page on your home network type flask run –host=0.0.0.0
  • Note that the above shows Flask running on my Pi on port 5000

On the Kindle, open the browser and navigate to the Pi’s IP address:5000 (e.g. 192.0.168.4:5000).

A little bit of Python, some Flask and an Amazon Kindle can be used as an eInk clock.
A little bit of Python, some Flask and an Amazon Kindle can be used as an eInk clock.

Note 2: As the HTML refresh is every 30 seconds the clock may be a few seconds out. Reducing the 30 seconds will increase accuracy but also increase page refreshes / eink screen usage.
